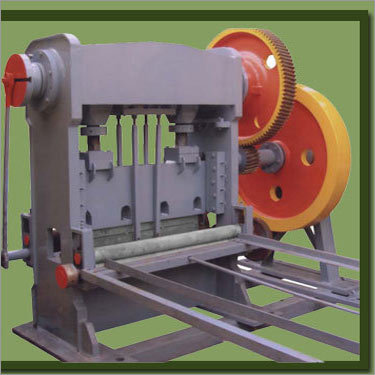

Strip Perforated Making Machine

Strip Perforated Making Machine
Strip Perforated Making Machine
Send Inquiry
Product Code : SPMM 01
Product Description

Perforated Sheet Metal Machine :-

The Perforated Sheet Metal Machine provided by us is made using high grade components that are obtained from trusted suppliers. The machines are fed by means of a roller system mechanism. It contains a die that is preloaded on machine. The machine has an upper section that starts stroking the sheet is perforated as per the die and is made using advanced set of the machine. The cycle of feeding and perforating continue automatically. The Perforated Sheet Metal Machine is made under the guidance of diligent employees. These machines find their usage in various industries such as construction, mechanical industries for making holes in metal sheets.

Operation : The sheet is fed to the machine by means of a Roller System Mechanism.The die preloaded on machine. On feeding the sheet, the upper section of the machine starts stroking.The sheet is perforated as per the die and is advanced by the amount of the perforated pitch set on the machine,with the next storke of the side. This cycle of feeding and perforating continuous automatically.



Model :

BWM - 1.0

BWM - 1.2L

BWM - 1.2H

Capacity of Width (mm)

1000

1250

1200

Diameter of Hole(mm) :

1 to 8

3 to 20

2 to 20

Thickness of Sheet (mm) :

0.2 to 0.7

0.4 to 1.24

1.0 to 3.0

Strokess per Minute :

60

50

40

Motor (HP) :

5

10

20




Standard Accessories : Electric Motor, Strater, 'V' Belts,One die set as per required perforation
