Mechanical Barbed Type

Mechanical Barbed Type
Mechanical Barbed Type
Send Inquiry
Product Code : MBT 01
Product Description

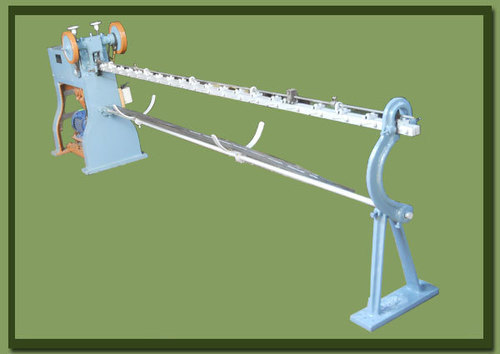

The Mechanical Barbed Type provided by us are used for straightening and cutting of electric welding rods. They can be used for dealing with any length of wire and can be cut without automatic attachment. The straightening function is done by 5 blocks which are adjustable. They are made using high grade components that are obtained from trusted suppliers. These machines are made under the supervision of our technical experts. The Mechanical Barbed Type is efficiently manufactured in accordance with predefined industry standards. Further, they are well suited for security purposes. Moreover, they comes in various dimensions and are available at pocket friendly prices.

  • Suitable for straightening and cutting of electric welding rods, cloth hanger wire, electrical parts, Structural Steel of Round / TMT / TOR - KARI BAR etc.
  • Any length of wire can be cut without automatic attachment
  • Straightening function performed by five straightening blocks which are adjustable
  • Automatic cutting gauge for required length can be provided

Model:

BWM-4

BWM-6

BWM-8

BWM-10

BWM-13

BWM-15

BWM-16

BWM-20

BWM-25

Thickness of wire (mm):

1.6 - 4.0

3.0 - 6.0

3.5 - 8.0

5.0 - 10

8.0 - 12.7

10 - 15

1.2 - 16.0

1.6 - 20

18 - 25

Length of wire to be cut automatically with the standard automatic cutting gauge (Inch) :

2-100

6 - 250

12 - 500

36 - 500

72 - 500

72 - 500

72 - 500

72 - 500

72 - 500

Speed (feet per min.):

90

100

120

100

80

70

60

60

50

Motor (HP):

3

5

7.5

10

15 & 5

15& 5

20 & 7.5

25 & 10

30, & 15

Net weight (Kg):

400

600

825

950

1050

1450

1450

2500

3000

Gross weight (Kg):

550

700

750

800

1000

1500

1750

3000

3700
