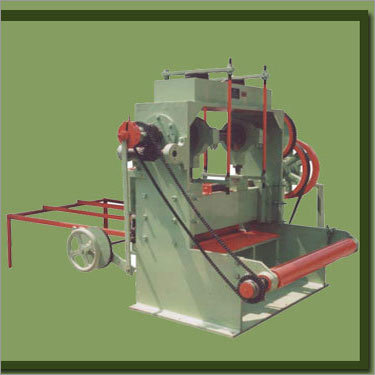

Machine for making Expanded Metal

Machine for making Expanded Metal
Machine for making Expanded Metal
Product Code : MMEM 01
Product Description

Machine for making Expanded Metal :-

The Machine for making Expanded Metal can be used for various types of metals such as steel, aluminium, brass and other non-ferrous metal sheets. They are formed into mesh by cutting and and stretching. The machine is made using high grade components and the sheet is fed to the blades by means of rollers. The Machine for making Expanded Metal has a upper blade that cuts the sheet in conjunction with the straight stationary lower blade. Further, they are manufactured with high perfection using quality-tested components with the help of ultra-modern techniques. Further, they are used for making metal mesh and are known for their features such as shock proof body, automatic, easy installation and robust design


Steel, Aluminium, Brass and other non-ferrous metal sheets formed into mesh by cutting and and stretching.

Operation : The sheet is fed to the blades by means of rollers.A toothed upper blade cuts the sheet in conjunction with the straight stationary lower blade at right angle to the feed direction in such a way that a web of certain width remains standing which is stretching when the upper blade goes down. With the next stroke of the slide the cycle is repeated. This operation of Cutting -Stretching - feeding is automatic.



Model :

BWM - 1.0

BWM - 1.2

BWM - 2.5

Capacity of Width (mm)

1000

1250

2500

Minimum Mesh (mm) :

6X3

10X5

25X12

Maximum Mesh (mm) :

30X15

40X20

75X37

Thickness (mm) :

0.3 - 0.9

0.5 - 1.0

0.9 - 2.5

Speed (Strok per Minute) :

75

70

60

Motor (HP) :

5.0

7.5

20.0

Net / Gross Weight (Kgs.) :

2700/3000

3000/3800

13000

Overall Dimensions (m) :

2.8X1.5X2.2

3.0X1.75X2.3

5.0X2.0X3.0



Standard Accessories : Suitable Electric Motor, Strater, 'V' Belts,One die set suitable for any one mesh size and sheet thickness.
